Hitachi, Ltd. (TSE: 6501) today announced the HD66323 and HD66325 as data line drivers
for XGA-size*1 large-screen TFT LCD panels, which feature
 a low output voltage variation of +/-2 mV achieved through the use of Hitachi's proprietary
offset cancellation method.  Sample shipments will begin in July 1999 in Japan.

The HD66323 and HD66325 provide a uniform, high-quality panel display, while at
the same time achieving 25% lower power consumption than the previous Hitachi model.

Notebook PCs, and space-saving desktop PCs and monitors, equipped with a TFT LCD
panel are coming into increasingly wide use, bringing a growing demand for larger XGA-
and SXGA-size*2 screens that offer higher definition.  In line with this trend, There is an
increasing demand for special-purpose drivers to drive the data lines of high-definition TFT
LCD panels.

Also, with the increasing size and definition of TFT LCD panels, a need has arisen for data
line drivers offering high drive capability to handle the panel load, together with drive
voltage uniformity and lower power consumption.  Following Hitachi's entry into the market
with the release of the HD66322 384-output, dot-inversion type driver for XGA-size color
TFT LCDs, the company is now releasing the HD66323 and HD66325, which offer
improved drive voltage uniformity and lower power consumption.

The HD66323 and HD66325 are data line driver suitable for use with XGA-size large-
screen, high-definition color TFT LCDs.  These drivers accept 6-bit digital data per pixel,
generate voltages for 64 gradations, and provide a 260,000-color display.  They have 384
outputs incorporating 384 6-bit D/A converters and op-amps, enabling XGA data line drive,
which requires 3,072 (1,024 dots x 3) outputs, to be handled by only eight drivers.

One important characteristic of a data line driver is output voltage uniformity.  With
Hitachi's previous model, variation in the input/output offset voltages of the 384 op-amps
incorporated into the chip resulted in a drive voltage variation of around +/-10 mV.

These new drivers, however, use a proprietary offset cancellation method that enables drive
voltage variation to be kept to +/-2 mV.  The input/output offset voltage polarity can be
reversed between frames and between lines, providing a uniform, high-quality panel display.

In addition, as a means of reducing chip area and power consumption, an improved paired-
amp design is used in which op-amp circuits are shared between adjacent outputs, resulting
in a 20% smaller chip area and 25% lower power consumption than Hitachi's previous
model.

Although the HD66323 and HD66325 have different input pin arrangements and interface
specifications, they have identical functions and TFT LCD drive performance in order to

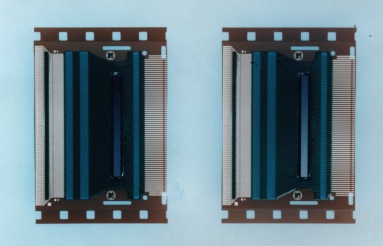

provide compatibility with the earlier model.  With the use of a TCP*3 package, using 50 um
pitch technology for the inner leads, the design of the HD66323/325 drivers minimizes both
chip area and TCP area.

Future plans call for an enhanced product lineup attuned to the trends in TFT LCD panel
displays, and their use in an increasing variety of applications, based on Hitachi's proprietary
offset cancellation drive method, together with the paired-amp system and multi-pin
technology.

Notes:  1. XGA (Extended Graphics Array): A display definition standard.
           XGA is a registered trademark of IBM.  The display size is 1,024 x 768 dots.
	2. SXGA (Super Extended Graphics Array): A display definition standard.
	   The display size is 1,280 x 1,024 dots.
	3. TCP (Tape Carrier Package): A package mounted on a thin-film tape, allowing
      	   ultra-thin type mounting (1 mm or less).

<Typical Applications>
Products with a built-in TFT LCD panel (notebook PCs, space-saving desktop PCs,
monitors)

<Prices in Japan>
Product Code		Sample Price (Yen)
  HD66323		       750
  HD66325		       750
