News Releases from Headquarters

January 11, 2001
Hitachi Releases HD66763, HD66764, and HD66765
STN Color LCD Controller Driver Chip Sets
- Support for simple moving picture display of
128 x 176 pixels with 256 colors,
or 132 x 176 pixels with 4,096 colors,
with high-quality, flicker-free display -
#
Hitachi, Ltd. (TSE: 6501) today announced the  HD66763, HD66764, and HD66765 STN
color LCD controller driver chip sets for graphic display, supporting the industry's
largest class of large-screen STN color LCDs and providing high-quality, flicker-free
display, for use with liquid crystal displays on mobile communication terminals such
as digital mobile phones with a built-in simple browser.  Sample shipments will begin
on January 29, 2001, for the HD66763 and HD66764, and in February 2001 for the HD66765
in Japan.

Digital mobile phones are rapidly becoming widely used as data communication terminals
handling information distribution services such as e-mail and Internet contents.  In
line with this, the trend in the small LCD panels built into mobile phones is toward
larger screen sizes with color graphics display capability in order to handle the
increased amount of display data required for images and so forth, in addition to
text-based displays such as phone numbers and kanji messages.

Hitachi has previously released the HD66761 single-chip LCD controller driver (128 x
80 pixels) as an STN color liquid crystal display driver for mobile communication
terminals, and is now releasing the HD66763, HD66764, and HD66765 to meet the market
demand for larger screen sizes, higher image quality, and moving picture display
capability.  The HD66763 and HD66765 are segment drivers with a built-in display buffer
memory and display controller supporting 256 and 4,096 colors, respectively, while the
HD66764 is a common LCD driver with a built-in LCD drive power supply generation
circuit.  A portrait-format LCD panel display of up to 128 x 176 pixels and 256 colors
can be achieved with a combination of the HD66763 and HD66764, and a display of up to
132 x 176 pixels and 4,096 colors with a combination of the HD66765 and HD66764.

These chip sets enable up to 140 characters (14 rows of 10 characters) to be displayed
when using a 12 x 12-pixel kanji font, sufficient for e-mail messages of some length.
In addition, on-chip bit operation functions*1 provide smooth processing of large
amounts of data, such as color image data, making it possible to greatly reduce the
graphics processing load on the microcomputer software.

Larger screen sizes and color display capacity not only require a higher LCD drive
voltage, but are also associated with lower display quality and increased power
dissipation.

With most conventional LCD drive voltage systems, segment signals and common signals
are driven within the same voltage range, with the result that a higher LCD drive
voltage means an increase in the current dissipation of the liquid crystal display
unit.  However, these chip sets use a HI-FAS LCD drive*2 method that makes it possible
for segment signals operating at high speed to be driven at a low voltage, enabling
the power dissipation of the liquid crystal display unit to be reduced by 30 to 40%.

Also, a defect of the conventional frame-elimination gradation*3 method when LCD
panel responsivity is improved to handle moving picture displays, for example, is
the occurrence of flicker due to the absence of an LCD panel afterimage, resulting
in lower image quality.  These new chip sets use a pulse-width gradation method*4
that does not depend on an afterimage, making it possible to eliminate flicker and
achieve high image quality.

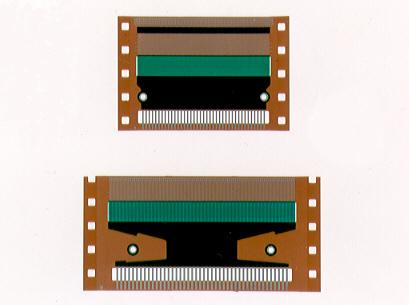

Supported mounting methods are COF*5 mounting, in which the device is mounted face-
down on a flexible film substrate, and TCP*6 mounting, in which the device is
connected directly to the LCD glass.Hitachi plans to further extend the product
lineup in the future with the development of models capable of handling even larger
screen sizes.

Notes:	1. Bit operation functions: Data processing functions that perform data
            rewriting and computational operations in display RAM for individual
            display dots.

	2. HI-FAS (Hi-Frequency Amplitude Selection) drive: A method that uses two
            different drive voltage ranges, with a high drive voltage for low-speed-
            operation common signals and a lower drive voltage for high-speed-operation
            segment signals.  This makes it possible to secure a voltage difference
            between segment and common signals for actual liquid crystal display,
            and, although requiring a complex circuit configuration, enables the
            liquid crystal display unit current dissipation to be reduced.

	3. Frame-elimination gradation: An intermediate tone is achieved by
            performing on/off control for each line according to gradation data and
            employing the LCD afterimage.

	4. Pulse-width gradation: An intermediate tone is achieved by adding an
            on/off waveform to the LCD panel for each line only at certain times in
            accordance with gradation data, thus reducing the on/off interval and
            enabling a more flicker-free image to be achieved than with frame-
            elimination gradation.

	5. COF (Chip On Film): A mounting method in which a chip with a gold bump
            is directly mounted face-down on a flexible film substrate.

	6. TCP (Tape Carrier Package): A package in which the chip is mounted on
            a thin-film tape.  Ultra-thin type mounting is possible.

< Typical Applications >
• Mobile phones handling e-mail and WWW content services
• Mobile phones supporting high-speed data transfer (W-CDMA, GSM)
• Small PDAs, handheld GPS terminals, handheld POS terminals
• Portable digital audio players
< Prices in Japan > (For Reference)
Product CodeShipment FormSample Unit Price (Yen)
HCD66763BPChip with gold bump1,300
HD66763TB0Bending TCP1,800
HCD66764BPChip with gold bump1,100
HD66764TB0Bending TCP1,600
HCD66765BPChip with gold bump1,700
HD66765TB0Bending TCP2,200
< Specifications >
ItemHD66763HD66765
Display size and colors128 x 176 pixels, 256 colors132 x 176 pixels, 4,096 colors
Number of outputs384 segment outputs396 segment outputs
Display RAM size180 kbits278 kbits
Display functions• Hardware color window cursor display
(arbitrary rectangular area: 8 colors specifiable)
• Split-screen partial display function (screen division at arbitrary line)
• 4-pixel-unit horizontal scrolling
Bit operation functions• Write data mask function (bit units)
• Bit operation function (pixel units)
• Specified color comparison drawing decision function
LCD drive duty1/16 to 1/176
(programmable in 8-line units)
Interface68/80-type 8/16-bit bus interface
Synchronous serial interface support
Dedicated common driver serial interface
Write cycle100 ns at Vcc=2.4V
200 ns at Vcc=1.8V
Logic power supply voltage1.8 V to 3.6 V
LCD drive voltage2 V to 4 V
Shipment forms• Chip with gold bump (for COF mounting)
• Bending TCP

ItemHD66764
Number of outputs176 common outputs
LCD drive bias1/4 to 1/13 (programmable)
LCD drive step-up circuit output2x to 12x + polarity inversion voltage generation (programmable)
InterfaceDedicated serial interface
Logic power supply voltage1.8 V to 3.6 V
LCD drive voltage10 V to 42 V (5 V to 21 V)
Shipment forms• Chip with gold bump (for COF mounting)
• Bending TCP
