Hitachi

Information & Control Platforms

RS90 Series

Hitachi’s RS90 Series of information control servers feature high reliability, long-term supply, and long-term maintenance. They are suited for information control systems used by a wide range of industries such as power and public transport.
Pre-installed with HiRUXS, a custom control OS based on Linux provides real-time functionality enhanced for information control systems, and supports failure analysis.

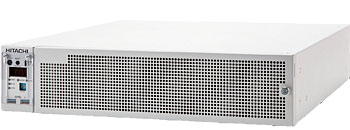

RS90/170

Standard model that meets both terminal and server requirements

  • Information control server equipped with an Intel® Xeon® D processor
  • Maximum of 32GB main memory with ECC
  • Support reliability-enhancing functions such as a disk software mirroring function, and a system duplication function.
  • 2U rack size / Support for desktop use
  • Wide range of interfaces such as 16 local area network (LAN) ports, six universal serial bus (USB) ports, multi-display, audio output, DI/DO interface
  • outstanding real-time performance and failure analysis

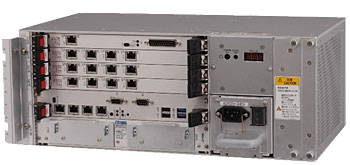

RS90/260

Wider range of operating environment conditions and high maintainability

  • Ambient temperature: 5 to 45
  • Vibration resistance
    Horizontal: 39.2 m/s2 at 33 Hz, Vertical: 19.6 m/s2
  • Front maintenance of main parts

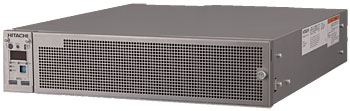

RS90/1100

High-performance and thin model equipped with an Intel® Xeon® D processor(12 cores)

  • high-performance processor(2.1 GHz, 12 cores)
  • Maximum of 64GB main memory
  • supports reliability-enhancing functions such as power supply and fan redundancy/online replacement.

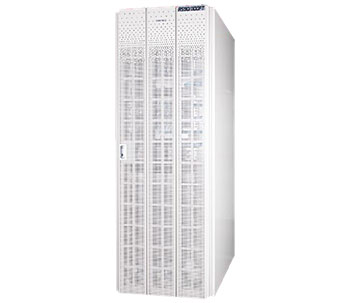

RS90/1100FT

Fault tolerance model to provide core functionality to ensure high data reliability and continuity.

High-performance is achieved by the quadruple-redundancy CPU block unit, and the quadruple-redundancy Voter (majority decision processing device) unit, which executes majority decision processing.
