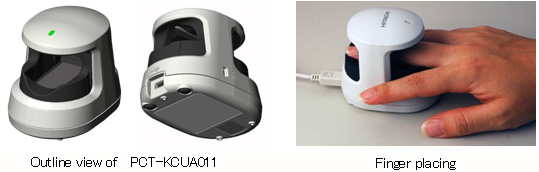

The Hitachi USB Finger Vein Biometric Authentication Unit PCT-KCUA011 performs image capture, verification and authentication within the unit. This reduces load on the host system or PC. The device supports operating systems other than Windows®.
False Acceptance rate (FAR): 0.0001%*
False Rejection Rate (FRR): 0.01%*
Failure to Enrollment Rate: (FTER): Less than 0.03%*
| Product Name | USB Finger Vein Biometric Authentication Unit |
| Model Name. | PCT-KCUA011 |
| Interface | USB 2.0/1.1 |
| Maximum Power Supply | Voltage: DC 5.0V +/- 5% (USB bus power supply) Current: Less than 500mA |
| Dimensions | Approx. 59mm/2.3”(W) x 82mm/3.2”(D) x 74mm/2.9”(H) |
| weight | Approx. 103g(USB cable not included) |
| Memory | SDRAM (volatile memory) for 2,000 templates |
| Template Storage | In the host system which embeds PCT-KCUA011 |
| Number of templates can be registered | In-device: 2,000 templates* In the host system: depends on the database in the system |
Note: These specifications may be subject to change without prior notice.
