HIRT-PUB17008 : Security Alert: Ransomware WannaCry

Last Update: October 10, 2017

Beginning from May 13, 2017, the ransomware WannaCry (also known as WannaCrypt, WanaCrypt0r, WCrypte, and WCRY) has been active in the wild. WannaCry exploits a vulnerability in Windows SMBv1 (vulnerability CVE-2017-0145, addressed by security update MS17-010), which allows remote code execution. The ransomware spreads like a network worm to infect other Windows systems with this vulnerability.

1.1 Ransomware behavior

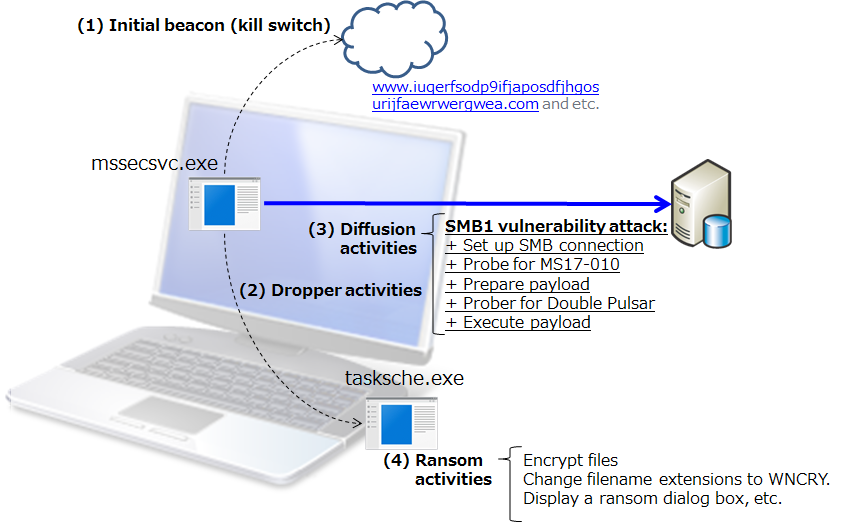

As shown in Figure 1, WannaCry is ransomware that functions like a network worm. After infecting a vulnerable Windows system, it encrypts files and demands payment in exchange for decrypting the files. As of March 16, 2017, no function that causes information leakage has been reported.

(1) Activities that check the network environment
WannaCry attempts to access a site, such as www[.]iuqerfsodp9ifjaposdfjhgosurijfaewrwergwea[.]com, which is used to check whether WannaCry should continue its operations. If the access is successful, WannaCry stops. Because access to the URL causes the operations to stop, this arrangement is also called a kill switch. Since May 15, there have been reports that some versions of this ransomware have the kill switch disabled.

(2) Dropper activities
This malware drops new executable and dll files as the necessary cyber attack resources that enable further diffusion and ransom activities.

(3) Diffusion activities
This malware attempts to propagate itself via SMB1 vulnerability attacks. In the process of propagating itself, the malware establishes an SMB1 connection between the infected system and the system to be infected. After this, the malware checks whether the vulnerability addressed by MS17-010 is present, prepares the cyber attack payload, checks whether the backdoor Double Pulsar is present, and completes its activities by executing the cyber attack payload.

(4) Ransom activities

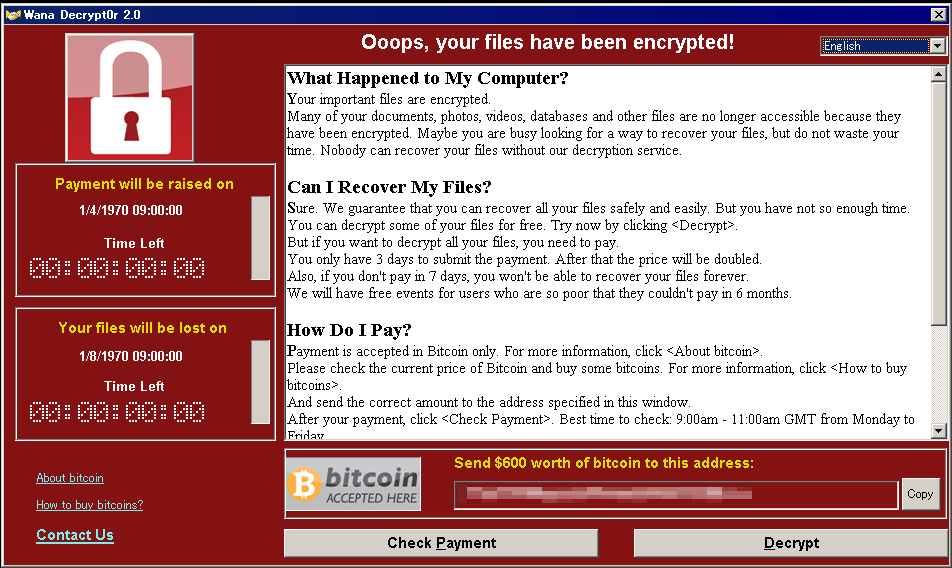

The malware performs its ransom activities by encrypting files and changing their filename extensions to WNCRY. In addition, a ransom dialog box like the one in Figure 2 is displayed.

1.2 Incidents

May 13, 2017

Kaspersky: More than 45,000 attacks of the WannaCry ransomware in 74 countries around the world
WannaCry ransomware used in widespread attacks all over the world
https://securelist.com/blog/incidents/78351/wannacry-ransomware-used-in-widespread-attacks-all-over-the-world/

US-CERT: Infections in 74 countries, including the United States, United Kingdom, Spain, Russia, Taiwan, France, and Japan.

Indicators Associated With WannaCry Ransomware
https://www.us-cert.gov/ncas/alerts/TA17-132A

UK NHS (National Health Service): At least 16 organizations were adversely affected.

Statement on reported NHS cyber attack
https://digital.nhs.uk/article/1491/Statement-on-reported-NHS-cyber-attack

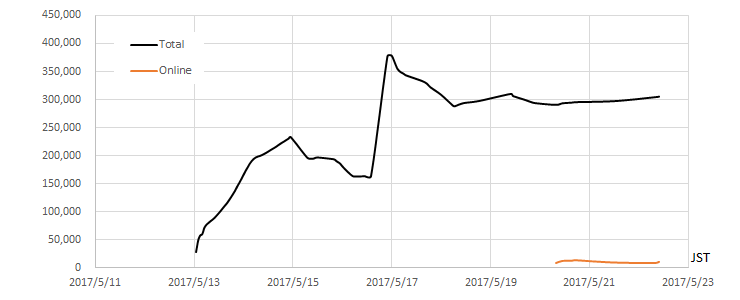

Wcrypt Tracker

https://intel.malwaretech.com/botnet/wcrypt/

May 13, 2017

Hitachi: Damages Caused by Ransomware, and Status of Recovery
https://www.hitachi.com/New/cnews/month/2017/05/170517a.html

1.3 Security alerts

Various organizations have issued the following security alerts.

US-CERT
Multiple Ransomware Infections Reported (May 13, 2017)
https://www.us-cert.gov/ncas/current-activity/2017/05/12/Multiple-Ransomware-Infections-Reported

US-CERT
Indicators Associated With WannaCry Ransomware (May 13, 2017)
https://www.us-cert.gov/ncas/alerts/TA17-132A

JPCERT/CC
JPCERT-AT-2017-0020: Alert regarding ransomware "WannaCrypt" (May 14, 2017) (May 14, 2017)
http://www.jpcert.or.jp/english/at/2017/at170020.html

IPA
About vulnerability countermeasures for Microsoft products that are being exploited by ransomware infection in the wild (May 14, 2017) (May 14, 2017)
http://www.ipa.go.jp/security/ciadr/vul/20170514-ransomware.html

ICS-CERT
ICS-ALERT-17-135-01: Indicators Associated With WannaCry Ransomware (May 15, 2017)
https://ics-cert.us-cert.gov/alerts/ICS-ALERT-17-135-01

1.4 Wannacry Analysis

WCry/WanaCry Ransomware Technical Analysis (May 14, 2017)
https://www.endgame.com/blog/wcrywanacry-ransomware-technical-analysis

WanaCryptor File Encryption and Decryption (May 15, 2017)
https://modexp.wordpress.com/2017/05/15/wanacryptor/

2.1 Restore or decrypt files encrypted by ransomware

Periodically backup your files and store them at offline as preparation for restoring encrypted files in incident.

2.2 Protect your system from ransomware infection

2.2.1 Vulnerability countermeasures (Keep your operating system and software up-to-date with the latest patches)

Microsoft reports that WannaCry attacks Windows 7, Windows Server 2008, and earlier versions of Windows and Windows Server that have the same vulnerability.

WannaCrypt ransomware worm targets out-of-date systems
https://blogs.technet.microsoft.com/mmpc/2017/05/12/wannacrypt-ransomware-worm-targets-out-of-date-systems/

Windows Vista, Windows Server 2008, Windows Server 2008 R2, Windows 7, Windows 8.1, Windows Server 2012, Windows Server 2012 R2, Windows RT 8.1, Windows 10, and Windows Server 2016

Apply the security update MS17-010, released by Microsoft in March 2017.

Microsoft Security Bulletin MS17-010: Security Update for Microsoft Windows SMB Server (4013389)
https://technet.microsoft.com/en-us/library/security/ms17-010.aspx

Windows Server 2003, Windows XP, Windows XP Embedded, and Windows 8

Apply the security update released by Microsoft as an emergency measure.

Customer Guidance for WannaCrypt attacks
https://blogs.technet.microsoft.com/msrc/2017/05/12/customer-guidance-for-wannacrypt-attacks/

2.2.2 Malware countermeasures

Maintain up-to-date anti-virus software, and scan all software downloaded from the internet prior to executing it.

Kaspersky
WannaCry ransomware used in widespread attacks all over the world (May 12, 2017)
https://securelist.com/blog/incidents/78351/wannacry-ransomware-used-in-widespread-attacks-all-over-the-world/

Symantec
What you need to know about the WannaCry Ransomware (May 12, 2017)
https://www.symantec.com/connect/blogs/what-you-need-know-about-wannacry-ransomware

Trend Micro
Massive WannaCry/Wcry Ransomware Attack Hits Various Countries (May 13, 2017)
https://blog.trendmicro.com/trendlabs-security-intelligence/massive-wannacrywcry-ransomware-attack-hits-various-countries/

RANSOM_WANA.A (May 13, 2017)
https://www.trendmicro.com/vinfo/us/threat-encyclopedia/malware/RANSOM_WANA.A

RANSOM_WCRY.I (May 13, 2017)
https://www.trendmicro.com/vinfo/us/threat-encyclopedia/malware/RANSOM_WCRY.I

Microsoft
WannaCrypt ransomware worm targets out-of-date systems (May 12, 2017)
https://blogs.technet.microsoft.com/mmpc/2017/05/12/wannacrypt-ransomware-worm-targets-out-of-date-systems/

Ransom: Win32/WannaCrypt (May 12, 2017)
https://www.microsoft.com/security/portal/threat/encyclopedia/Entry.aspx?Name=Ransom:Win32/WannaCrypt

McAfee
Protecting against Ransom-WannaCry (May 2017) (May 12, 2017)
https://kc.mcafee.com/corporate/index?page=content&id=KB89335

Further Analysis of WannaCry Ransomware (May 14, 2017)
https://securingtomorrow.mcafee.com/mcafee-labs/analysis-wannacry-ransomware/

When Symantec Endpoint Protection detects a cyber attack targeting the vulnerability (SMB1), the following alarm dialog box pops up (Figure 4).

2.2.3 Workarounds

WannaCry randomly probes IPv4 addresses on the Internet, and tries to infect them. The following workarounds might be helpful in protecting your system from network-based attacks (that is, prevent the malware from exploiting CVE-2017-0145, addressed by MS17-010).

Disable SMB1 (Server Message Block v1)

Microsoft Security Bulletin MS17-010: Security Update for Microsoft Windows SMB Server (4013389)
https://technet.microsoft.com/en-us/library/security/ms17-010.aspx#ID0E3SAG

How to enable and disable SMBv1, SMBv2, and SMBv3 in Windows and Windows Server
https://support.microsoft.com/en-us/help/2696547

Blocking SMB port 445

WannaCrypt ransomware worm targets out-of-date systems
https://blogs.technet.microsoft.com/mmpc/2017/05/12/wannacrypt-ransomware-worm-targets-out-of-date-systems/

Hitachi products using Microsoft Windows operating systems are affected to this issue.

HIRT recommends that the following measures are effective in your network environment such as information systems, healthcare systems, industrial control systems and etc. to prevent Ransomware WannaCry.

• Restricting unauthorized access to the network and networked devices.
• Making certain appropriate antivirus software and firewalls are up-to-date.
• Monitoring network activity for unauthorized use.
• Protecting individual network components through routine and periodic evaluation, including updating security patches and disabling all unnecessary ports and services.
• Developing and evaluating strategies to maintain critical functionality during adverse conditions.

4.1 Malware sample

Wannacry
SHA256:24d004a104d4d54034dbcffc2a4b19a11f39008a575aa614ea04703480b1022c
MD5:db349b97c37d22f5ea1d1841e3c89eb4

4.2 Network environment check activities

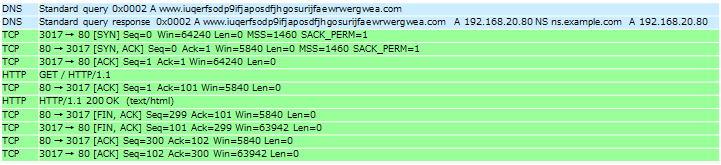

WannaCry inquiries the IP address of network environment check site to the DNS server set up on the infected PC. After that, if HTTP access to the network environment check site is succeed, it stops its activity (diffusion and ransome activities). At the additional investigation, we confirmed that WannaCry stops the those activities if it receive the HTML reponse such as "HTTP/1.1 200 OK" or "HTTP/1.1 403 Forbidden" (Figure5). Note that, for the additional investigation, we configured the network environment check site (192.168.20.80) on the network shown in Figure 6.

4.3 Diffusion activities

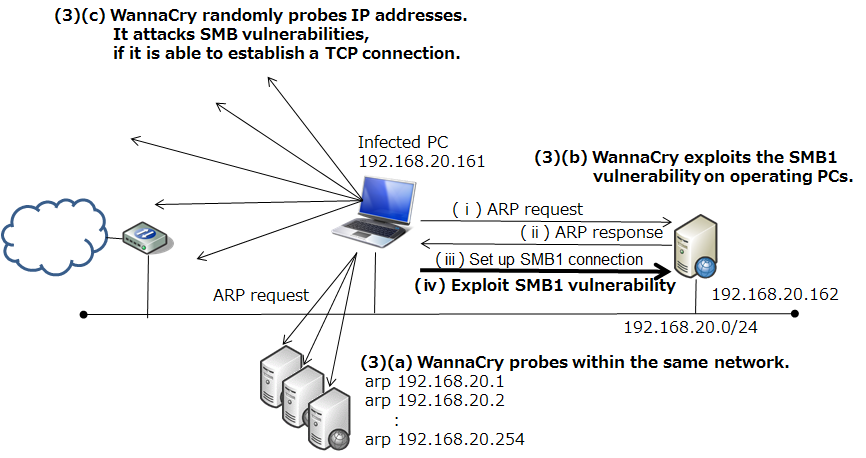

WannaCry was executed on an infected PC in the network environment shown in Figure 6. The following presents the results of an investigation into the probe method of new PCs for infection as characteristic of a network worm.

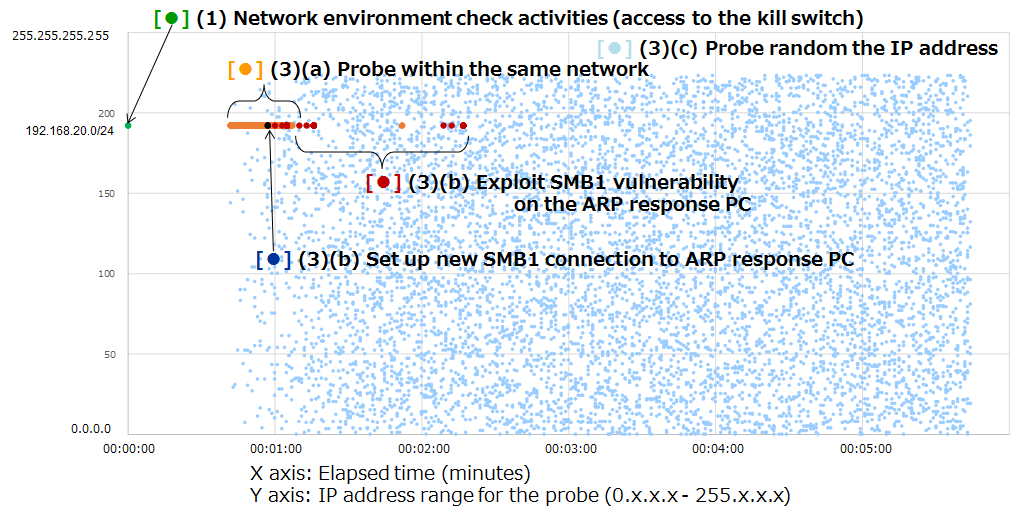

WannaCry on the infected PC (192.168.20.161) uses ARP packets to probe other operating PCs in the same network ((3)(a)). Next, it launches a cyber attack against the PC that returned an ARP response (192.168.20.161). At the same time, it also begins to probe random the IP address. The WannaCry operates with the assumption that its activities will be performed over an intranet, and as shown in Figure 7, it starts infecting the PC that returned an ARP response (192.168.20.162) within about one minute.

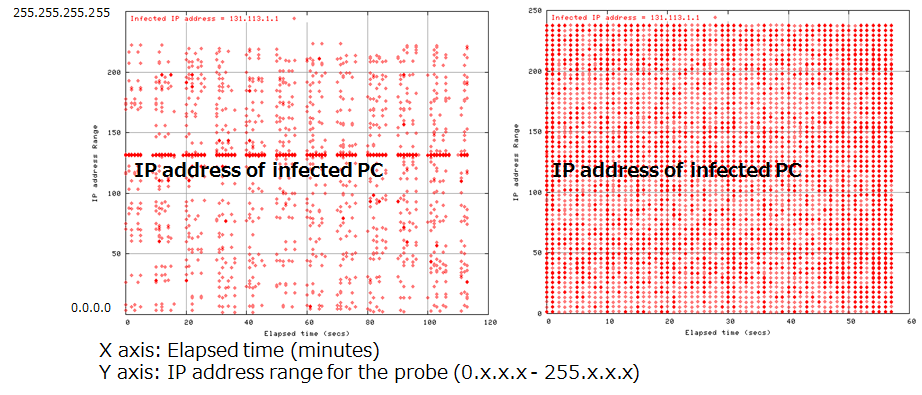

Figure 8 shows the network probe patterns used by two malware of the early 2000s: CodeRed3 (2002), and Slammer (2002) within a similar network environment. These graphs show the results for the first 10,000 packets from the start of observation. CodeRed3 primarily probed IP addresses in close proximity to the IP address of the infected PC, and Slammer probed a completely random IP address.

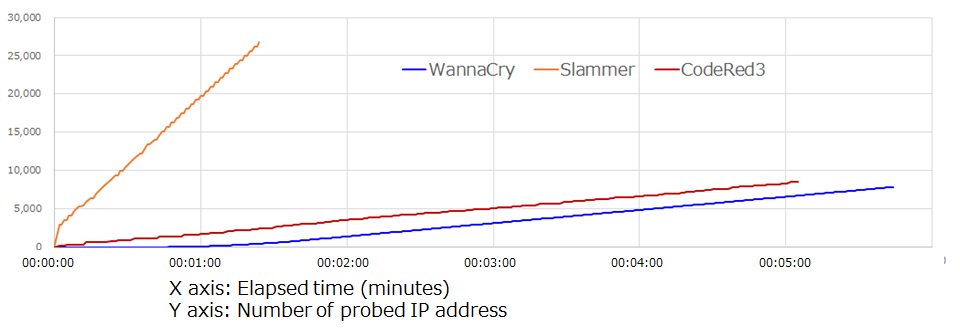

The following figure, Figure 9, shows the speeds with which WannaCry, CodeRed3, and Slammer probe new IP addresses. The probing performance of WannaCry is not particularly high, and it is likely that WannaCry operates with the assumption that its activities will be performed over an intranet, as a result to increase the speed of its diffusion.

Note that, if the subnet mask is /24, WannaCry probes IP addresses of operating PCs within the same network in the following pattern: x.x.x.1, x.x.x.2 ... x.x.x.254. If the subnet mask is /16, WannaCry probes IP addresses in the following pattern: x.x.0.1, x.x.1.1 ... x.x.255.1, x.x.0.2, x.x.1.2 ... x.x.255.2. Because of this, WannaCry's diffusion activities are less efficient when a wider subnet mask is used. On the other hand, because using a wider subnet mask means that many packets must be continued to transmit, this also increases the possibility that normal communications will be disturbed.

4.4 SMB1 vulnerability attack

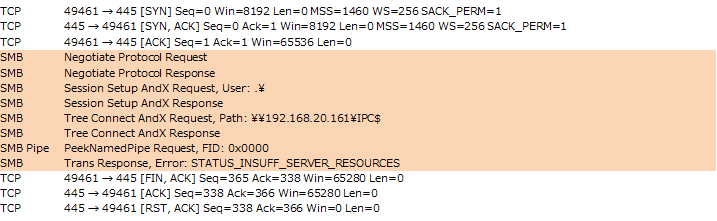

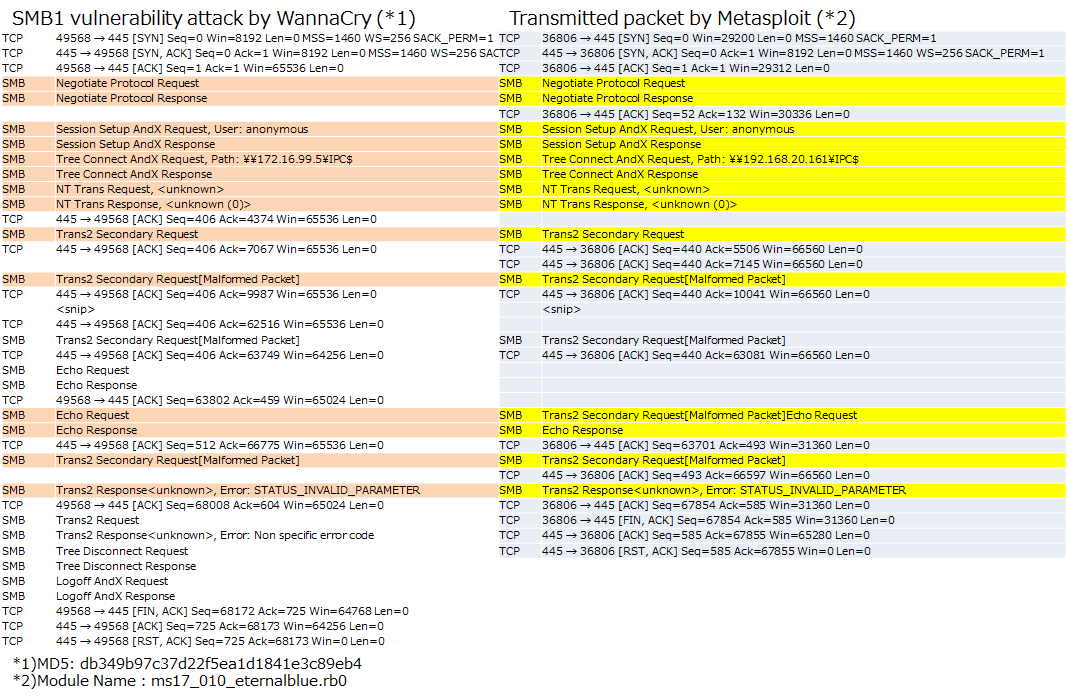

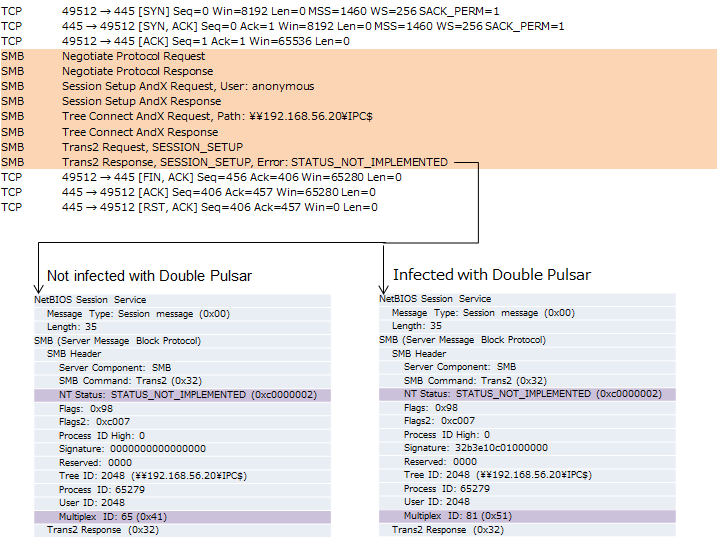

WannaCry uses three SMB connections during SMB 1 vulnerability attack. SMB connections flow containing the IP address (192.168.20.161) of infected PC (Figure 10) and two IP addresses (192.168.56.20, 172.16.99.5)(Figure 11 and Figure 12) hardcoded in the malware body.

Normal systems which is not infected with Double Pulsar, respond with a "Not Implemented" message and a "Multiplex ID" 65 (0x41) against a "trans2 SESSION_SETUP" request. On the other hand, infected systems respond with a "Not Implemented" message and a "Multiplex ID" 81 (0x51). Also the right side of Figure 12 shows Metasploit(ms17_010_eternalblue.rb) flow for comparison.

4.5 Verification by WannaCry and Metasploit module

Table 1 shows "Verification results of network infection by WannaCry(*1)", "Validation results by Metasploit(*2)" and "Report of infection status(* 3)" (as of May 23, 2017).

Table 1: Result of verification by WannaCry and Metasploit module

*0)-:Uninvestigated
*1)MD5: db349b97c37d22f5ea1d1841e3c89eb4
*2)Module name: ms17_010_eternalblue.rb
*3)Kaspersky: Over 98% of All WannaCry Victims Were Using Windows 7
https://www.bleepingcomputer.com/news/security/over-98-percent-of-all-wannacry-victims-were-using-windows-7/
*4)Vulnerable in result of smb_ms17_010.rb
*5)Error occurred during Anonymous login

BSoD: Blue Screen of Death

Masato Terada (HIRT) and Naoko Ohnishi (HIRT)
